The Master M04 LED Floodlight
Developed by Midstream Lighting, The Master M04 is a highly efficient LED floodlight designed for seamless retrofitting, offering a versatile modular design, impressive lumen output, and robust construction for reliable performance in demanding environments.
Features and benefits of the Master M04:
- Effortless Retrofit Solution: The Master M04 offers a straightforward retrofit option for replacing Metal Halide floodlights, ensuring a seamless transition to LED lighting without the need for extensive modifications or rewiring.
- Versatile Modular Design: Featuring a modular architecture, the Master M04 facilitates a flexible approach to lighting design. This design enables the combination of various power products within the same location, allowing for customised solutions tailored to diverse lighting applications.
- Impressive Lumen Output: Capable of delivering over 65,000 lumens, the Master M04 meets the highest performance standards and requirements.
- Asymmetric or Symmetric Distribution: Designed to have either asymmetric or symmetric distribution, the Master M04 offer flexibility in lighting design. This allows for a tailored approach to meet specific lighting requirements, ensuring optimal light distribution for different settings
- Highly efficient Heat dissipation: An in-house designed extruded heat sink allows for highly efficient heat dissipation due to its large surface area, when compared with a die-cast product. This keeps lumen degradation to a minimum, extending life and performance.
- Durable Construction: Manufactured with a stainless steel construction, the Master M04 Floodlights offer improved structural integrity and a longer product life. This durability makes them suitable for use in harsh environmental conditions, ensuring reliable performance even in challenging settings.
- DALI controls The Master M04 features plug-and-play DALI controls, allowing for easy integration with existing lighting systems. This capability enables seamless management and control of the floodlight’s operation.
TECHNICAL SPECS
| M04 | |
|---|---|
| Performance | |
| Luminaire Output | Up to 65,000 lm |
| Power Absorption | Up to 475 W |
| Lumen Maintenance [L90 B10] | 90'700 h |
| Lumen Maintenance [L70 B50] | > 140'000 h |
| Luminaire Efficacy | 135 lm/W |
| Optoelectronics | |
| CRI | 70 - 80 - 90 |
| Colour Temperature | 3000 - 4000 - 5000 - 5700 K |
| Secondary Optics | Anti-yellowing PMMA refraction matrix |
| No of LEDs | 128 |
| Luminaire Body | |
| Chassis and Bracket | Stainless steel 3Cr12 (optional AISI 316) |
| Metal Finish | Anti-corrosive primer and powder coating |
| Heatsinks | Anodized extruded aluminium alloy AL6060 |
| Bracket | Angled reversible bracket - 1x M20 and 2x M16 fixing points available |
| Floodlight Weight | 15.5 Kg |
| Dimensions (L-W-H) | 434 x 333 x 345 mm |
| Protection Level | IP66 - protected against powerful waterjets |
| Impact Resistance | |
| Windage EPA | 0.130 m2 |
| Driver Electronics | |
| Input Voltage Options | 200-240V / 277V ac 50-60Hz or 277-480V ac 50-60Hz (On Request) |
| Driver efficiency | 94% |
| Power factor | 0.96 |
| Overheating protection | Drops output current |
| Surge Protection | 10kV line-earth, 6kV line-line |
| Total harmonic distortion (THD) | 10% (at 200-240 Vac and 75%-100% load) 20% (at 277-480 Vac and 60%-100% load) |
| Operating Conditions | |
| Working Temperature | -40°C / + 55°C |
| Humidity Range | 10% - 95% |

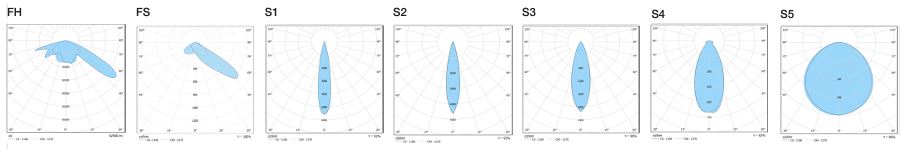

PHOTOMETRICS
