MODUS S SERIES
The Modus S Series is a lightweight LED lighting solution built for small to medium-sized sports applications and offers high lumen packages with limited weight. It minimises the number of floodlights required per pole at the most competitive price. It can be used for both retrofit and new builds and meets industry standards and specifications across the applications it’s used for.
Features and benefits of the Modus S Series:
- Designed with specialty light shields to provide high uniformity for
sports fields and facilities as well as to specifically reduce light spill for
neighbours and residents providing an ideal solution for areas such as community and inner city facilities - Features a newly developed proprietary light engine that delivers up-to
30% higher efficiency compared to previous series. - The 2 module configuration design allows the use of multiple optics in
order to optimize the light beam for each field type and installation height. - Offers a high lumen package with limited weight minimising the number of
floodlights required per mast. - Equipped with a single remote driver for flexible installation and weight
saving. - Manufactured with a reversible angled bracket that allows for seamless
retrofit on existing masts, in both overhang and underhung configuration. - Designed to support wireless control.
- Manufactured with a stainless steel construction that improves structural
integrity and life of product a critical need when used across sporting environments. - Midstream proprietary optics deliver full compliance to spill light
regulations - IP67 Rated
APPLICATIONS

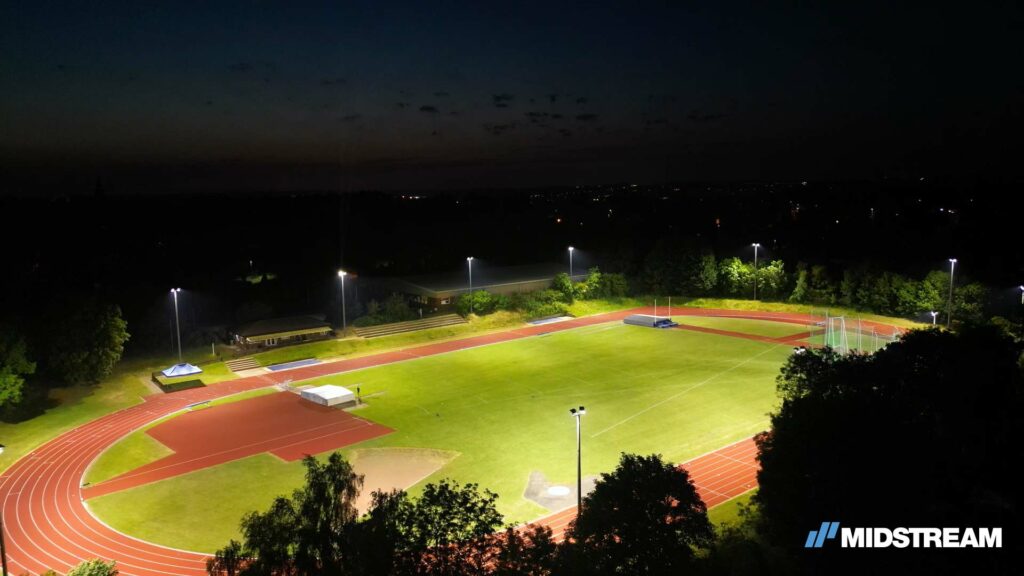

- Small and Medium-Sized Sport Facilities
- Public Football Field
- Public Rugby Field
- MUGA Pitch
- Hockey Field
- Tennis Courts
The products
- MODUS S
MODUS S
TECHNICAL SPECS
| S900 | S1000 | S1500 | |
|---|---|---|---|
| Performance | |||
| Luminaire Output | Up to 114.000 lm | Up to 135.500 lm | Up to 180.000 lm |
| Power Absorption | Up to 999 W | Up to 1180 W | Up to 1500 W |
| Lumen Maintenance [L80 B10] | >119.000 h | >119.000 h | >90.700 h |
| Lumen Maintenance [L70 B50] | >190.000 h | >190.000 h | >190.000 h |
| Optoelectronics | |||
| CRI | 70 - 80 - 90 | ||
| Colour Temperature | 3000 K Warm White / 4000 K Neutral White / 5000 K Pure White / 5700 K Cool White | ||
| Secondary Optics | weather proof, Anti-yellowing PC refraction matrix | ||
| No of LEDs | 256 | 256 | 384 |
| Luminaire Body | |||
| Chassis and Bracket | Stainless Steel | ||
| Metal Finish | Powder Coating | ||
| Heatsinks | Anodized Extruded Aluminium (Copper Content < 0.1%) | ||
| Bracket | Angled Reversible bracket, M20 or 2 x M16 Fixing points | ||
| Weight | 20 Kg | 20 Kg | 27 Kg |
| Dimensions (L-W-H) | 593 mm x 437 mm x 478 mm | 593 mm x 437 mm x 478 mm | 570 mm x 722 mm x 505 mm |
| Protection Level | IP66 | ||
| Impact Resistance | IK09 | ||
| Windage EPA | 0.203 m2 | 0.203 m2 | 0.278 m2 |
| Driver Unit | |||
| Dimensions (L-W-H) | 398 mm x 230 mm x 152 mm | 398 mm x 230 mm x 152 mm | 420 mm x 138 mm x 189 mm |
| Weight | 9 Kg | 9 Kg | N Unit 7.6 Kg / S Unit 12.7 Kg |
| Protection Level | IP67 | ||
| Electronics | |||
| Voltage input | 200-480 VAC 50-60 Hz | ||
| Active Power F.C. | 0.97 | ||
| Surge Protection | 10 kV line-earth, 6 kV line-line | ||
| Insulation Class | IEC Class I | ||
| Short Circuit Protection | Auto-recovery | ||
| Over Heat Protection | Drops output current | ||
| Operating Conditions | |||
| Working Temperature | -40°C / +50°C | ||
| Humidity Range | 0% - 94% |
PHOTOMETRICS
NS
WS
MS
RESOURCES
Modus S English Technical Specification (2) (pdf 768.71 KB)
The Modus S installation guide digital (pdf 9.34 MB)
Modus S1500 Sports LED Tech Spec (pdf 1.37 MB)
